Inclined tube and plate media configurations that support compact gravity-separation and clarification systems.

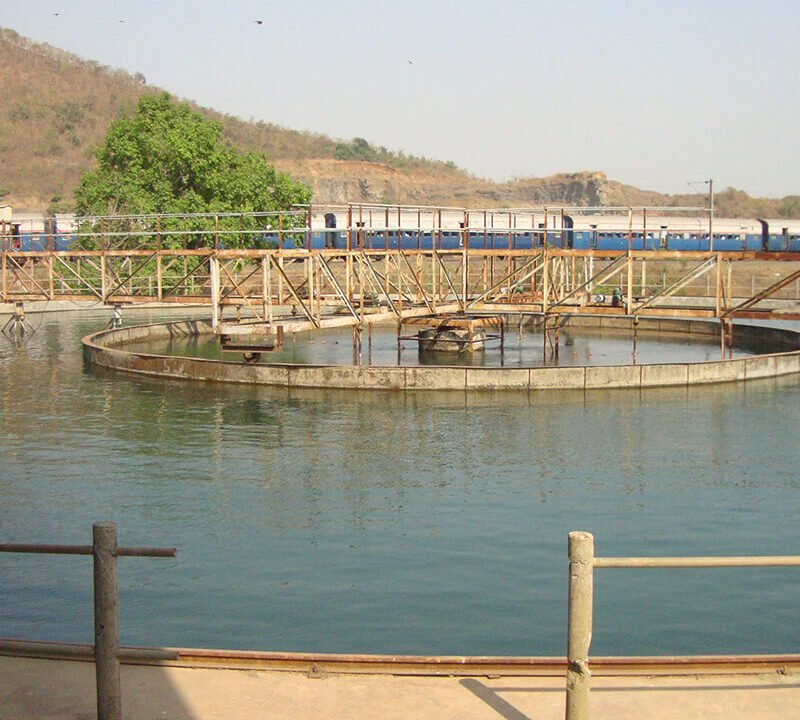

SUPER PLAST Tube Settler systems are fast replacing conventional sedimentation systems in the pre and post treatment of wastewater as well as in river water clarification. These systems have been used have been designed to handle volumes upto 500 MLD and have been in successful use since almost two decades. SUPER PLAST offers the following products in the tube settler system
Highlights extracted from the complete product information and editable from the Product admin screen.
Most efficient tube settler design
Can be transported in the form of loose tubes and hence saves transportation cost
High specific settling area provided along with a high ration of wetted perimeter to wetted surface area.
Lowest hydraulic radius giving high settling efficiency
Needs a bottom support structure
Most widely used and accepted tube settler design
Wide tongue and groove mechanism causes minimum fuss during site assembly
High specific settling area provided
Established and proven design
Self supporting assembly structure of tube modules
Does not require any elaborate support structure in the tank
Usually reaches the site in glued form. No site assembly required
Final selection depends on the actual operating and dimensional requirements.
Expand a model to review its source technical information. Every table remains editable in WordPress.
| Property | Value |
|---|---|
| Model No. | SP-TS60 |
| MOC | Virgin PVC, UV Stabilized |
| Shape | Boomerang - Chevron |
| Fitting | Tongue and groove |
| Thickness | 1mm +/- 0.1mm |
| Plan Settling Area (at 60 degrees slope) | 12 m2/m3 |
| Plan Settling Area (at 55 degrees slope) | 14 m2/m3 |
| Cross sectional area | 69mm x 45mm |
| Hydraulic Radius | 1.11 cm |
| Maximum Continuous Operating Temperature | 55° C |
| Storage | To be kept away from direct sunlight |
| Property | Value |
|---|---|
| Model No. | SP-TS120 |
| MOC | Virgin PVC, UV Stabilized |
| Shape | Chevron - Unequal Hexagon |
| Fitting | Tongue and groove |
| Thickness | 1mm +/- 0.1mm |
| Plan Settling Area (at 60 degrees slope) | 11 m2/m3 |
| Plan Settling Area (at 55 degrees slope) | 13 m2/m3 |
| Cross sectional area | 120mm x 44mm |
| Hydraulic Radius | 1.5 cm |
| Maximum Continuous Operating Temperature | 55° C |
| Storage | To be kept away from direct sunlight |
| Property | Value |
|---|---|
| Model No. | SP-TS55 |
| MOC | Virgin PVC, UV stabilized |
| Shape | Square |
| Fitting | Glued modules |
| Thickness | 1mm +/- 0.1mm |
| Plan Settling Area*** | 5 m2/m2 |
| Cross Sectional Area | 50mmx50mm |
| Hydraulic Radius | 1.38 cm |
| Maximum Continuous Operating Temperature | 55° C |
| Storage | To be kept away from direct sunlight |
| Property | Value |
|---|---|
| Model No. | SP-BF 1K |
| MOC | HDPE |
| Shape | Disc |
| Total Surface area | 1000 m2 / m³ |
| Void ratio | 76% |
| PSA/TSA | 95% |
| Density | 0.93 - 0.96 gms/cc |
| Specific weight (kg/m2 of surface area) | 0.135 kg / m² |
